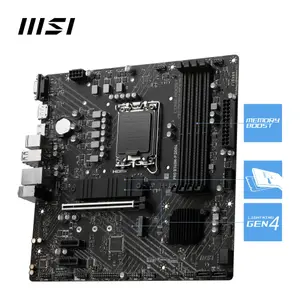

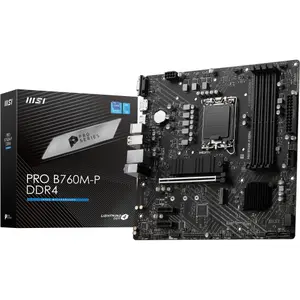

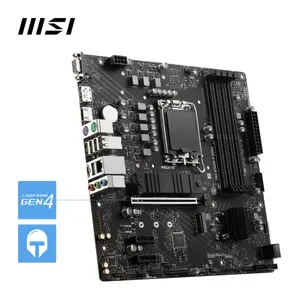

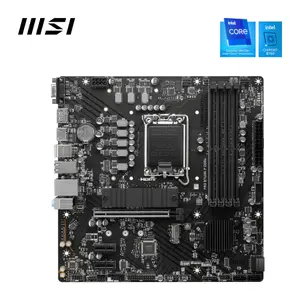

MSI Motherboard Pro B760M-P DDR4 - B760/LGA1700/DDR4/mATX

Technical specifications

• Model Name: PRO B760M-P DDR4
• Processor Support : Supports Intel® Core™ 12th/ 13th generation processors, Pentium® Gold and Celeron® processors.
• CPU Socket: LGA 1700
• Chipset : Intel® B760 chipset
• Expansion Slots : 1x PCIe 4.0 x16, 2x PCIe 4.0 x1
• Display Interface : Supports 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 - Requires graphics processors
• Memory: 4 DIMMs, Dual Channel DDR4-4800+ MHz (OC)
• Storage: 2x M.2 Gen4 x4 64Gbps, 4x SATA 6Gb/s ports
• USB ports: 1x USB 3.2 Gen 2 10Gbps (1 Type-C)
• 3x USB 3.2 Gen 2 1 5Gbps (3 Type-A)
• 8x USB 2.0
• LAN : Realtek® RTL8111H Gigabit LAN
• Wireless / Bluetooth: Intel® Wi-Fi 6E, Bluetooth 5.3
• Audio: 8-channel HD Audio (7.1) with Audio Boost

Features

• Lightning Gen 4: The latest Gen4 PCI-E and M.2 solution with up to 64 GB/s bandwidth for maximum transfer speed.
• PCI-E Steel Amor: Protects VGA cards from distortion and electromagnetic interference.
• LED EZ Debug: The easiest way to troubleshoot.
• Frozr AI Cooling: Detects CPU and GPU temperatures and automatically adjusts fan power to an appropriate value.
• Memory Boost: Advanced technology to deliver pure data signals for optimal performance, stability and compatibility.
• Core Boost: A premier layout and optimized power supply design ensure better performance.
