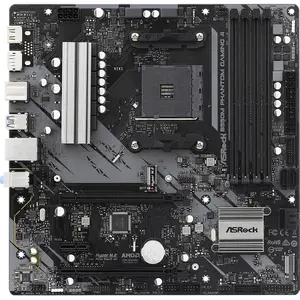

ASRock Motherboard B550M Phantom Gaming 4 (AM4) Micro ATX
$132.20 $118.97 -10%
Enhance your gaming experience with the ASRock B550M Phantom Gaming 4 motherboard, perfect for high-performance setups.
Description
Memory standard
- Memory type: DDR4
- Memory format: UDIMM (DIMM)
- Memory standard: PC4-25600 (3200 Mhz)
- DDRx slot: 4 slots
Display
- Graphics technologies supported: HDR 10/10+ (High Dynamic Range)
- Maximum supported resolution: 5120x2880 (5K Ultra HD+)
Connectivity
- Port S-ATA III: 4 ports
- M.2 slot: 2 slots
- PCI-Express standard: PCI-Express 4.0
- Port PCI-Express 16X: 2 ports
- Port PCI-Express 1X: 1 port
- LAN throughput: 1000 Mbps (Gigabit IEEE 802.3ab)
Connections
- Video connectors: 1x DisplayPort and 1x HDMI
- Audio connectors: 3 x 3.5mm jack outputs (5.1 sound)
- Port External USB 2.0: 2 ports
- Port Internal USB 2.0: 2 ports
- Port External USB 3.2: 4 port(s)
- Port Internal USB 3.2: 2 port(s)
- Port USB 3.x type C external: 1 port
- Port RJ45 total: 1 port
Audio performance
- Audio chipset: Realtek ALC897
- Number of audio channels: 8 channels
Design & Aesthetics
- Format compatible: Micro-ATX
- Main color(s): Gray and Black
Weight & Dimensions
- Length / Depth: 24.4cm
- Width: 24.4cm
Autres technical specifications
- Socket: AMD AM4
- Chipset: AMD B550
Additional information
| Brand | ASRock |
| Supplier reference | 90-MXBE90-A0UAYZ |
| Color | dark grey |
| Color | Gray |
