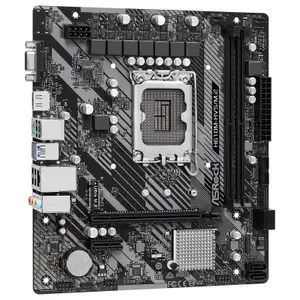

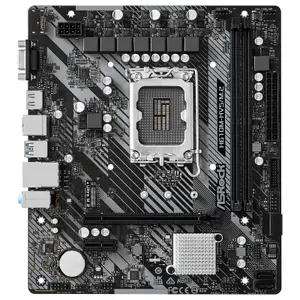

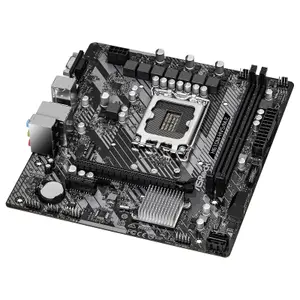

ASRock Motherboard H610M-HVS/M.2 R2.0 Micro ATX

Processor

• Socket: Intel LGA 1700
• Chipset: Intel H610

Memory Standard

• RAM type: DDR4
• Memory format: UDIMM (DIMM)
• Memory standard: PC4-25600 (3200 Mhz)
• DDRx slots: 2 slots

Display

• Maximum supported resolution: 7680x4320 (8K Ultra HD)

Connectivity

• SATA III port: 4 ports
• M.2 slot: 1 slot
• PCI-Express standard: PCI-Express 4.0
• PCI-Express 16X port: 1 port
• PCI-Express 1X port: 1 port
• LAN speed: 1000 Mbits/s (Gigabit IEEE 802.3ab)

Connections

• Video connections: 1x HDMI and 1x VGA
• Audio connections: 3 x 3.5mm Jack outputs (5.1 sound)
• External USB 2.0 port: 4 ports
• Internal USB 2.0 port: 1 port
• External USB 3.2 port: 2 port(s)
• Internal USB 3.2 port: 1 port(s)
• Total RJ45 port: 1 port

Audio Performance

• Audio chipset: Realtek ALC897
• Number of audio channels: 8 channels

Design & Aesthetics

• Compatible format: Micro-ATX
• Main colour(s): Black

Weight & Dimensions

• Length / Depth: 22cm
• Width: 19.3cm
• Weight with packaging: 0.9 kg
