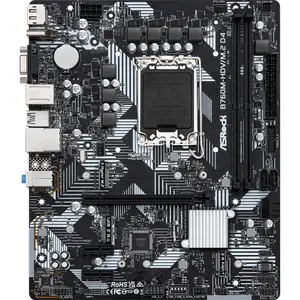

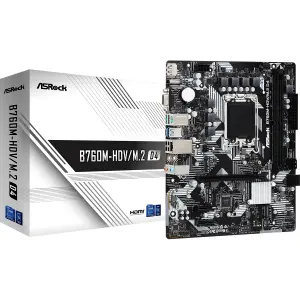

ASRock Motherboard B760M-HDV/M.2 DDR4 (Intel LGA 1700) Micro ATX

The latest at the best price

A motherboard equipped with the Intel B760 chipset is designed to meet the needs of demanding users on a limited budget. This chipset offers optimum performance and reliability in all types of computing environments. It has been developed to provide customers with excellent experiences when using the computer systems it powers.

Advanced features for all

The B760 motherboard offers an alternative to the powerful Z790 platform without compromising the possibilities of Gamer or enthusiast use. It can offer advanced functionalities with the latest technologies, such as DDR5 support and PCIe 5.0, as well as more PCIe lines than its predecessor, the B660.

Up-to-date connectivity

Wifi 6E is natively managed by the motherboard, so you can connect with complete freedom. Bluetooth 5.x is also included for even greater device integration.

Durability in demand.

Reliability is also the order of the day with the B760 motherboard. A whole host of improvements have reinforced the system's stability over time. To achieve this, a dual-rail, 12+1+1-phase, 90A DrMOS power supply system is used, with robust components. Server-class printed circuit boards, up to 8 layers depending on the model, limit interference from transmitted signals, to guarantee optimum operating quality. You can rest assured that you'll be able to enjoy your configuration for a long time to come.

ASRock B760 product range

Memory standard

• Type of memory: DDR4
• Memory format: UDIMM (DIMM)
• Memory standard: PC4-25600 (3200 Mhz)
• DDRx slot: 2 slots

Storage capacity

• RAID type(s) supported: 0, 1, 5 and 10

Display

• Maximum resolution supported: 7680x4320 (8K Ultra HD)

Connectivity

• Port S-ATA III: 4 ports
• M.2 slot: 2 slots
• PCI-Express standard: PCI-Express 4.0
• Port PCI-Express 16X: 1 port
• Port PCI-Express 1X: 2 ports
• LAN throughput: 1000 Mbps (Gigabit IEEE 802.3ab)

Connections

• Video connections: 1x DisplayPort, 1x HDMI and 1x VGA
• Audio connectors: 3 x 3.5mm jack outputs (5.1 sound)
• Port External USB 2.0: 2 ports
• Port Internal USB 2.0: 2 ports
• Port External USB 3.2: 3 port(s)
• Port USB 3.2 internal: 1 port(s)
• Port USB 3.x type C external: 1 port
• Port RJ45 total: 1 port

Audio performance

• Audio chipset: Realtek ALC897
• Number of audio channels: 8 channels
