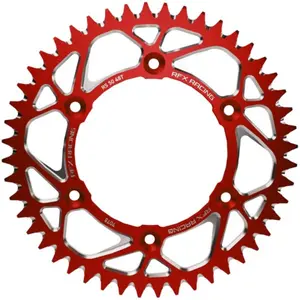

RFX Motorcycle crown Aprilia RXV 450 [450]/Aprilia SXV [450]/Aprilia RXV 550

The RFX Pro Series Armalite sprockets are designed and tested at the highest level by the race teams in world and British championships.

The two-sprocket design offers optimal performance, reduced weight thanks to a centre made from 7075-T6 aluminium, and longer tooth life due to the outer part made from special high-carbon-density steel.

The Armalite sprockets also feature a hexagonal interface between the inner ring and the outer ring, a revolutionary technology for sprockets that maximises the transmission between the two parts and eliminates any force applied to the rivets.

Features:

• CNC 7075 aluminium inner ring
• HCS outer ring
• Hex-Drive interface between the inner ring and the outer ring
• CAD-designed profile for reduced weight.
• New style of mud release grooves to reduce wear.
• The rigid design increases resistance to torsion.
• Anodised colour

Installation instructions:

• Start by placing the motorcycle on a stand, with the rear wheel off the ground.
• Remove the chain and the wheel from the motorcycle.
• While holding the hex key, loosen the nuts using an adjustable wrench.
• Remove all the nuts and the worn sprocket.
• Clean around the hub ensuring it is clean and free of debris.
• Take the new sprocket and place it on the hub ensuring it fits snugly and that the bolt holes are properly aligned.
• Clean the bolts and nuts of the sprocket.
• Apply blue Loctite to each bolt and insert them into the holes.
• Screw the nuts onto the bolts by hand, making sure the seals are intact and in good condition.
• Keep the hex key in place and tighten the nuts evenly.
• Tighten the nuts and bolts according to the user manual.
• Reattach the wheel to the motorcycle ensuring that the chain is properly aligned and tightened to the manufacturer's specifications.

Features:

• colour: Red
• material: Aluminium
• v-colour: Red
• weight (g): 500
• width (mm): 315
• height (mm): 20
• length (mm): 280
• volume (cm³): 1764
• chain pitch: 520
• sprocket version: Standard
• v-number of teeth: 51 teeth
• number of teeth (sprocket): 51
